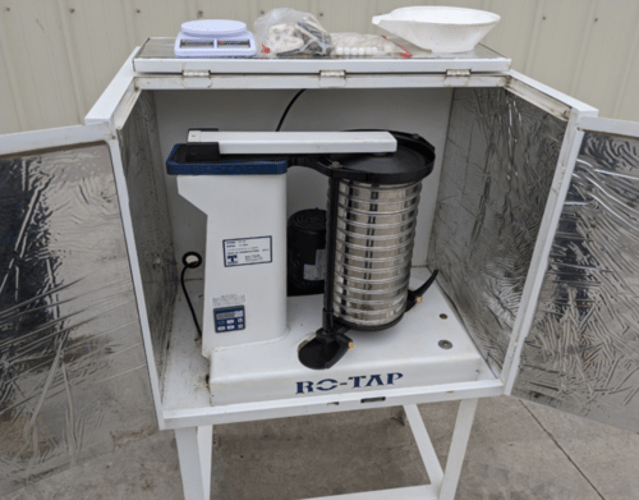

WS Tyler RX-29 screen available. Condition: used. Perfect for efficient material separation. Ideal for various industry applications. From trusted manufacturer RO TAP.


• Equipment:
• Manufacturer: W.S. Tyler (Haver & Boecker)
• Model: RO-TAP® RX-29
• Type: Mechanical Sieve Shaker
• Condition: Used

• Capacity:
• Compatible Sieve Diameter: 8 in. (200 mm / 203 mm)
• Full-Height Capacity: Up to (6) Full-Height Sieves Plus Pan
• Half-Height Capacity: Up to (13) Half-Height Sieves Plus Pan
• Particle Size Range: 2 in. to U.S. No. 635 Mesh (20 Microns)

• Performance:
• Motion Profile: Horizontal Circular Motion with Vertical Tapping
• Oscillation Speed: 278 ±10 Oscillations Per Minute
• Oscillation Displacement: 1-1/8 in. x 7/16 in.
• Tapping Speed: 150 ±10 Taps Per Minute
• Hammer Weight: 5 lbs. 6 oz. (2.44 kg)
• Integrated Timer: 99-Minute Digital Timer

• Electrical Requirements:
• Motor: 1/4 HP
• Motor Speed: 1,725 RPM (60 Hz)
• Voltage: 115 VAC
• Phase: Single-Phase
• Frequency: 60 Hz
• Current Draw: Approximately 4.4 Amps

• Dimensions:
• Width: 28 in.
• Depth: 21 in.
• Height: 25 in.
• Weight: 180 lbs.

• Construction:
• Industry Standards: ASTM C136, ASTM C702, ASTM D6913 & AASHTO Compliant
• Drive System: Mechanical Ro-Tap® Oscillating & Tapping Action
• Noise Level: Approximately 86 dB

• Typical Applications:
• Aggregate Testing
• Soil Analysis
• Mineral Processing
• Sand & Gravel Classification
• Industrial Particle Size Analysis
• Quality Control Laboratories
