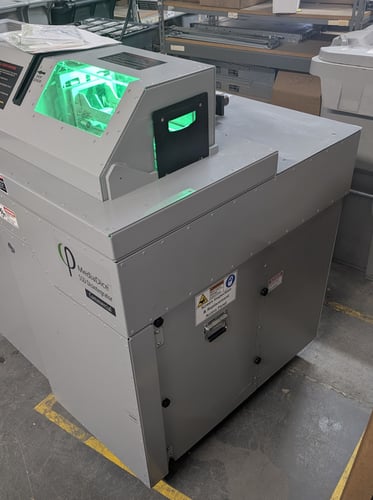

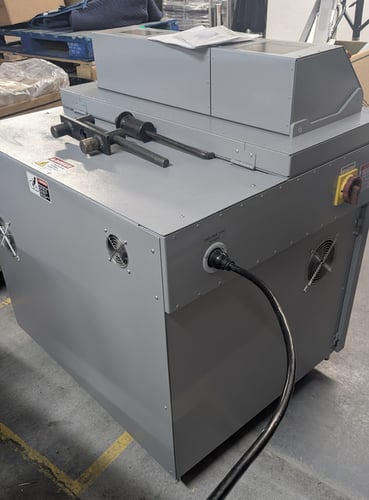

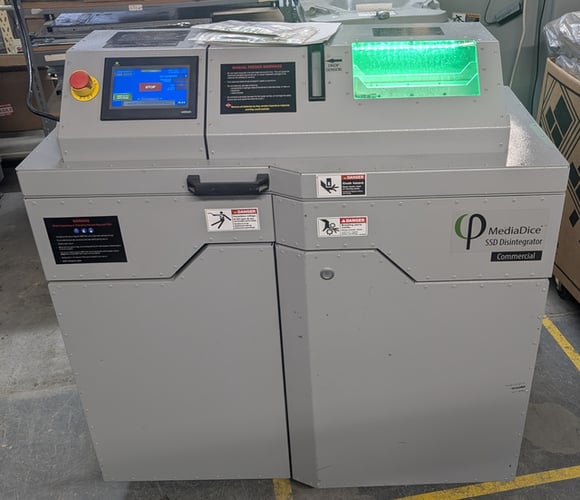

Description

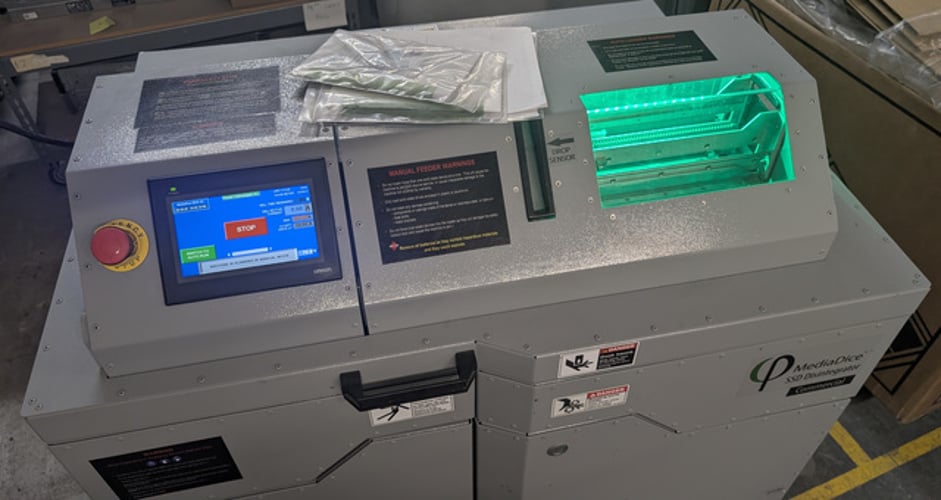

The Phiston MDS-2C is an SSD disintegrator designed for solid state drive destruction, processing approximately 240 SSDs per hour with a batch capacity of up to 25 units. The machine disintegrates drives to less than 2 mm particle size, meeting NSA/CSS compliance and DIN 66399 E6-E7 standards for SSD level destruction. Power options include 200-240V, 3-phase 30A or 380-460V, 3-phase 20A at 50/60 Hz, with a 7.5 HP motor. Dimensions are 53″ W × 45″ D × 59″ H, shipping weight approximately 1,500 lbs.
Performance
Throughput:
~240 SSDs/hour (1 every 10–15 sec)

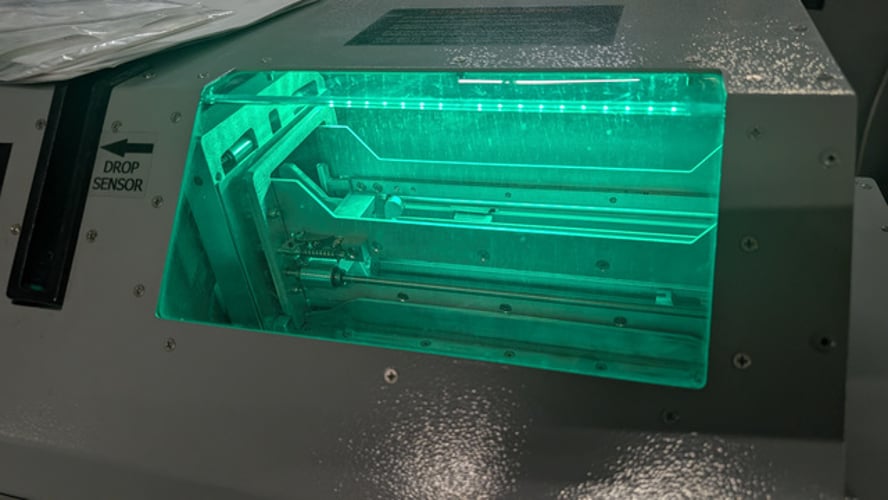

Autoloader Capacity:
Up to 25 SSDs per batch
Cutting / Destruction System
Technology: Patented knife mill disintegration
Particle Size:
<2 mm (NSA/CSS compliant)
Destruction Standard:
DIN 66399 E6–E7 (SSD level)
Feed Type:
Automatic + manual feed
Acceptable Materials
SSDs (including enterprise drives)
USB / flash drives
Circuit boards
Smartphones
CDs/DVDs/Blu-ray
Credit cards / ID cards
Construction & Features
Heavy-duty industrial frame

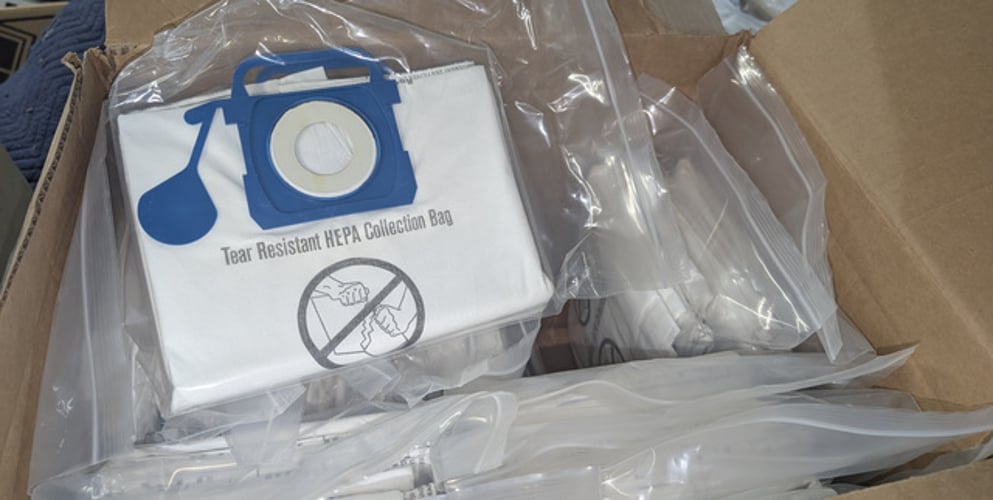

Integrated HEPA vacuum system for debris containment
Fully enclosed, hands-free operation
PLC touchscreen controls with cycle counter
Auto shutoff for jams
Hinged screen for inspection and maintenance
Built-in casters + leveling feet for mobility
Drive & Power
Motor: 7.5 HP

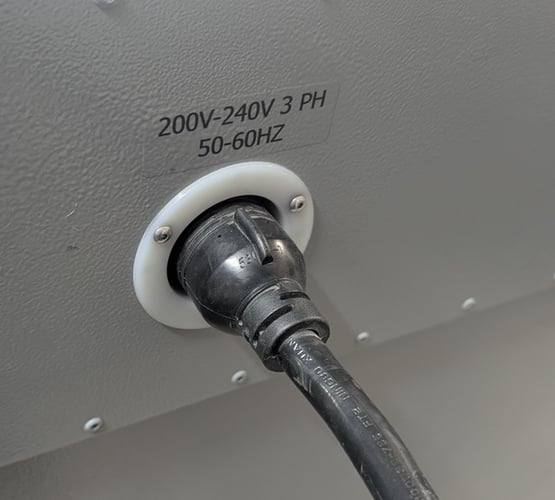

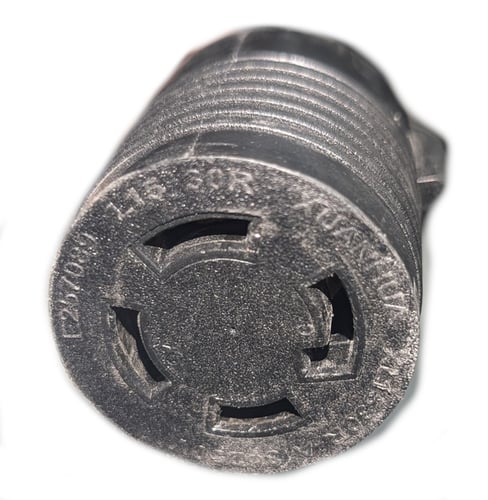

Power Requirements:
200–240V, 3-phase, 30A
380–460V, 3-phase, 20A
Frequency: 50/60 Hz
Shipping
Shipping Weight: ~1,500 lbs
Shipping Dimensions:
53″ W × 45″ D × 59″ H
