Category: Balers, Horizontal

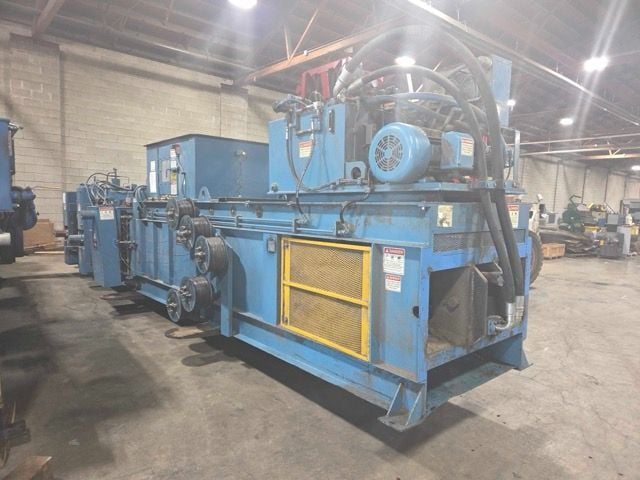

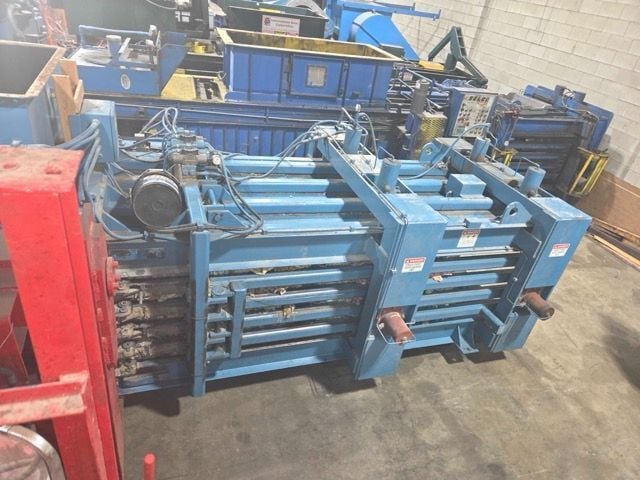

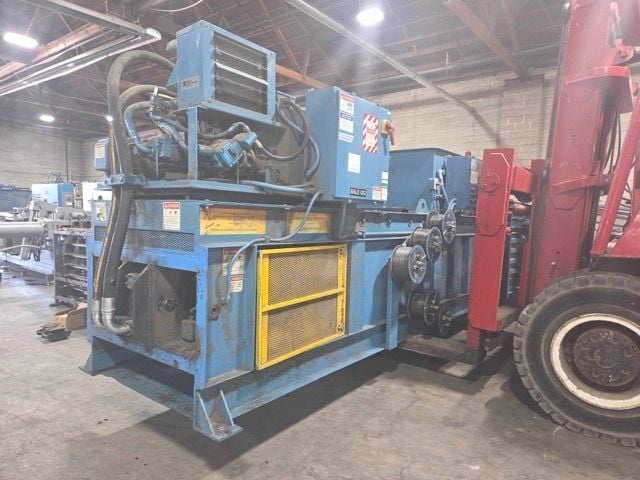

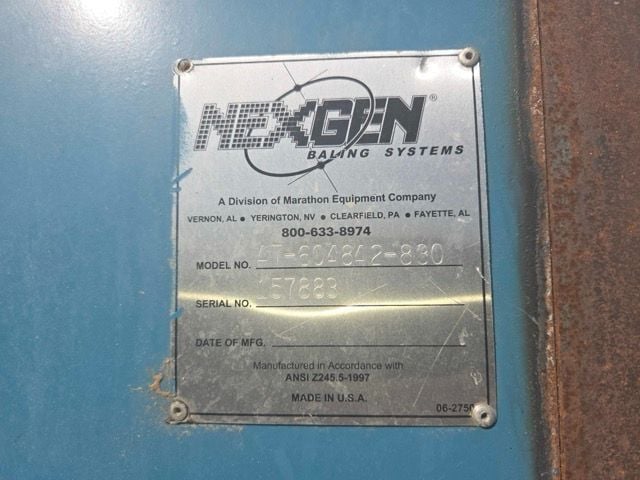

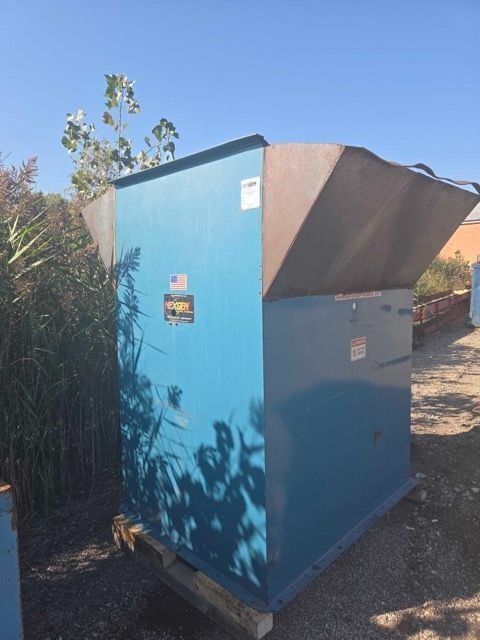

Nexgen Marathon #AT-604842-830, automatic tie horizontal baler, 30 HP, 8" bore, 48" x 42" bale size

Details

Description

Marathon AT-604842-830 auto-tie horizontal baler powered by a 30 HP main motor with an 8" bore main cylinder. Produces bales measuring 48" wide by 42" high. Charge chamber dimensions are 60" long by 45" wide, and the feed hopper opening measures 60" by 48". Overall machine length is 368", width is 199", and approximate shipping weight is 44,000 lbs. The hydraulic system operates at high pressures and temperatures with recommended operating temperature below 160° F. The hydraulic reservoir features a sight gauge, with oil level to be maintained above 3/4 full.


• Manufacturer: Marathon Equipment
• Equipment Type: Open-End Auto-Tie
Horizontal Baler

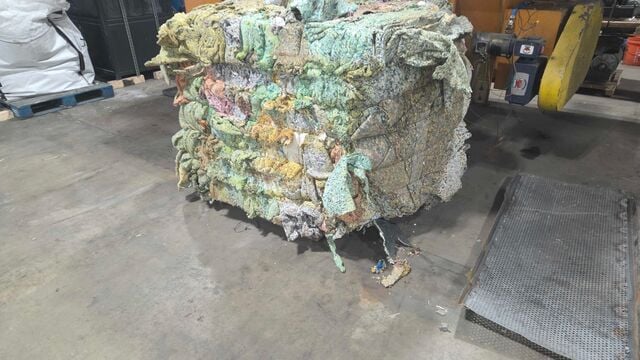

• Bale Size: 48" W × 42" H
• Charge Chamber: 60" L × 45" W
• Feed Hopper Opening: 60" L × 48" W
• Main Motor Power: 30 HP
• Main Cylinder: 8" Bore
• Approx. Shipping Weight: 44,000 lbs.
• Applications: OCC, Paper, Plastics,
UBC & Light Non-Ferrous Materials
