The MTB BDR2400 is a versatile, heavy-duty single-shaft shredder engineered for high operating torque, delivered by a 5-tonne clutch-mounted flywheel. Fed by grapple or conveyor, it reduces a wide range of materials, with interchangeable grids to control output size.

**Features:**
• 5-tonne clutch-mounted flywheel for high, sustained operating torque
• Reversible heat-treated alloy-steel blades - usable on 4 sides for low operating cost
• Simple-shape wear parts plus easy blade adjustment and grid-mount system to minimize maintenance downtime
• Interchangeable grids for adjustable output sizing
• Robust construction for demanding recycling duty

MTB BDR2400 SINGLE-SHAFT SHREDDER - TECHNICAL DATA
(per MTB BDR2400U factory literature)

Drive power: 220 kW (~295 HP)
Rotor length: 2,400 mm (94.5")
Rotor diameter: 550 mm (21.7")
Rotor / cutting speed: 115-155 RPM
Machine weight: 26 tonnes (~57,300 lbs)
Fixed blades (counter knives): 12
Rotating (movable) blades: 36 or 48
Output particle size: 10-100 mm (~0.4"-3.9"), depending on grid installed

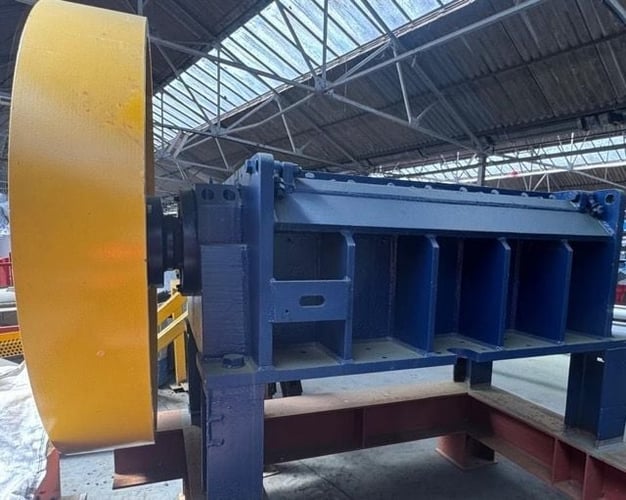

Flywheel: 5-tonne clutch-mounted flywheel (high operating torque)

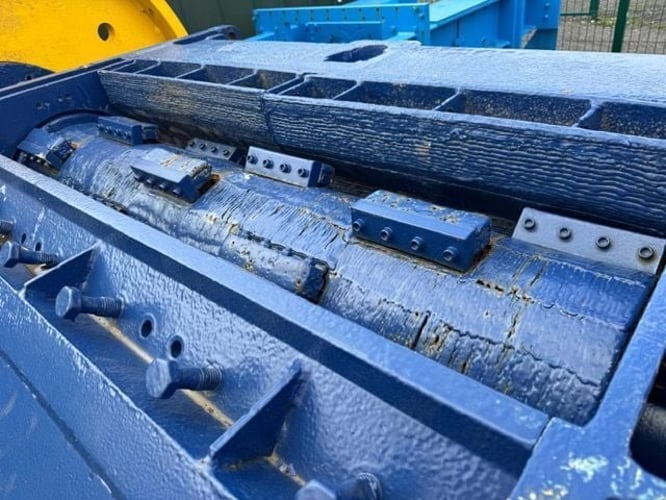

Cutting blades: heat-treated special alloy steel, reversible (usable on 4 sides)
Wear parts: simple-shape design for low operating cost
Feed: by grapple or conveyor
Grids: interchangeable for output sizing

**Designed to process:**
• WEEE / electronic scrap
• Non-hazardous industrial waste
• Tyre shreds
• Aluminium and metal scrap

**Included:**
• Drive motor
• Undermill conveyor
• Control panel
• Hopper
• Base frame
