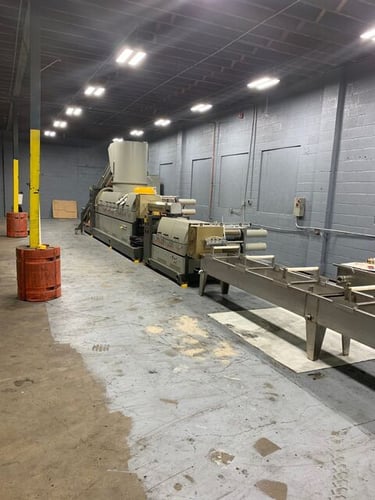

6" 30:1 L/D PE and PP Extrusion Line
System includes: Crusher / compactor with infeed conveyor with control panel
Two stage plastic extruder:
1) 150mm x 4500mm (30:1) primary, double vented with vacuum system & 2 stage
filtration
2) 150mm x 1800mm (12:1) secondary, single vented with 2 stage filtration

• Equipment:
• Manufacturer: Huaxing
• Model: HXSJ 150-DWM11
• Type: Three-Stage Plastic Extrusion / Recycling Line
• Condition: Used
• Year of Manufacture: 2019 (Typical)

• Processing Capacity:
• Throughput: 600–1,000 kg/hr (Approximately 1,323–2,205 lbs/hr)
• Compatible Materials: Polypropylene (PP), Polyethylene (PE)

• Feed System:

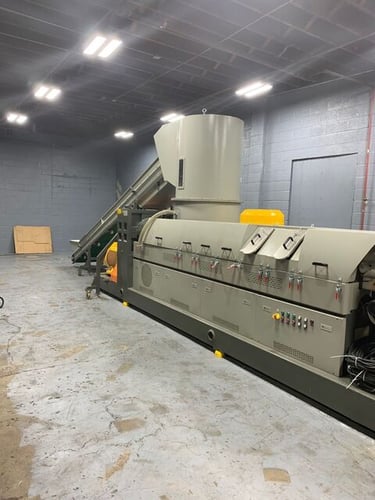

• Input System: Crusher / Compactor with Integrated Infeed Conveyor
• Controls: Dedicated Local Compactor Control Panel

• Primary Extruder:
• Screw Diameter: 150 mm (Approximately 6 in.)
• Barrel Size: 150 mm × 4,500 mm (5.9 in. × 177.2 in.)
• L/D Ratio: 30:1
• Degassing: Double-Vented Vacuum System
• Filtration: Dual-Stage Screen Changer

• Secondary Extruder:
• Screw Diameter: 150 mm (Approximately 6 in.)
• Barrel Size: 150 mm × 1,800 mm (5.9 in. × 70.9 in.)
• L/D Ratio: 12:1
• Degassing: Single-Vented
• Filtration: Dual-Stage Screen Changer

• Drive System:
• Main Drive Motor: 215 HP
• Motor Speed: 1,785 RPM

• Electrical:
• Voltage: 480V AC
• Phase: 3-Phase
• Frequency: 60 Hz

• Downstream Equipment:

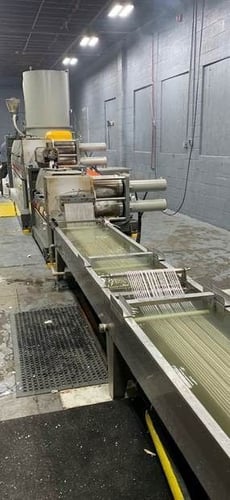

• Cooling System: Water Bath Strand Cooling
• Cooling Equipment: Cooling Tank, Cooling Tower & Recirculation Pumps
• Dewatering: Vacuum Discharge Blowers
• Pelletizing: Strand Cutter with Vibrating Classifier Table

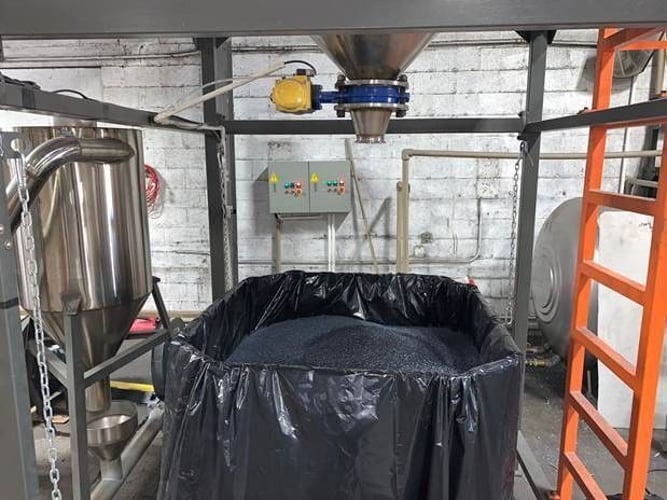

• Material Handling: Storage Cyclone with Pneumatic Discharge Blower

• Controls:
• Main Electrical Control Cabinet
• Integrated Extrusion Line Controls
• 60 Hz / 480V Electrical System

• Typical Applications:
• Post-Consumer Plastic Recycling
• Post-Industrial Plastic Reprocessing
• PP Pellet Production
• PE Pellet Production
• Plastic Film & Rigid Plastic Recycling
